Power Supplies with EtherCAT from PULS
May 27, 2026
Experience the power of real-time application data provided by PULS power supplies with EtherCAT interface.
Easy. Efficient. EtherCAT.
Application data in real-time

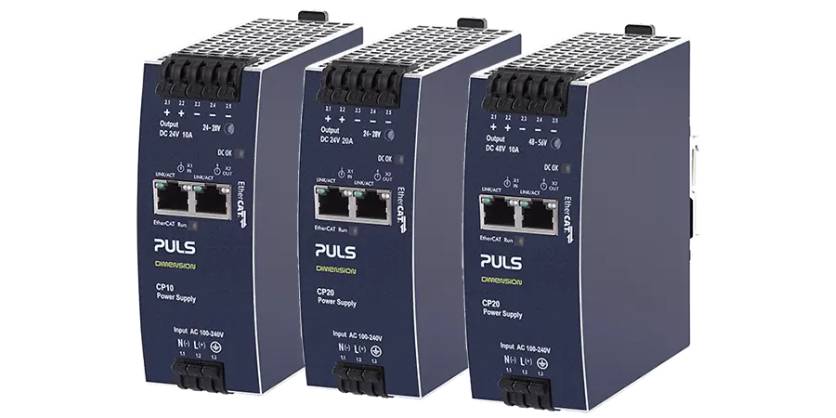

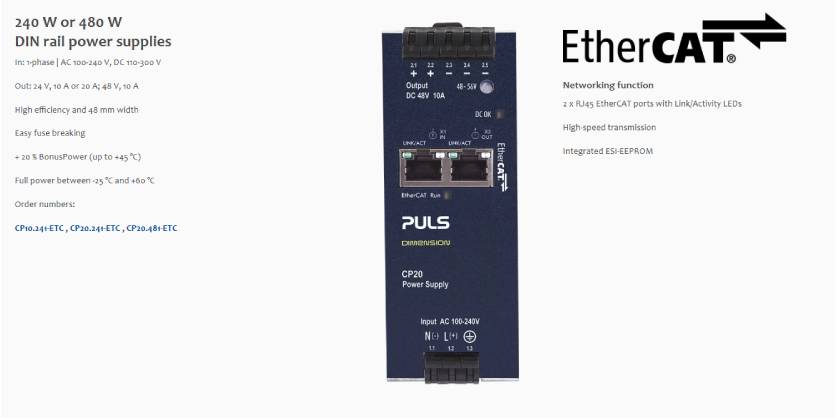

PULS power supplies with integrated EtherCAT ports can be directly connected to EtherCAT controllers – without the need for additional gateways, providing easy and rapid access to all application data and power supply functions. The real-time capabilities and high-speed transmission of EtherCAT is ideal for condition monitoring, logging, maintenance and remote in large-scale systems.
The power supply data can also be used within real-time control loops. Based on the data, drives or other high-energy users can be controlled in an optimal way to keep the dynamic power needs within the capabilities of the power supply system. This enables improved system efficiency as power supplies can be used at the optimal operating point.
Your benefits
At a glance
Data potentials
Use cases
Full control of any machine
Smart power supplies with EtherCAT can immediately provide alerts or error messages in case of critical power supply scenarios such as phase failures or transients on the AC-side. This is especially interesting for systems affected by bad AC grid conditions.
In addition, the DC-side can be monitored throughout operation – providing in-time alerts on e.g. power dips or current overloads. This allows a timely reaction by reducing power demands or even entering a safe system status.
Achieve higher energy efficiency and sustainability
Measurement data from AC mains and DC output enables you to monitor and optimize energy consumption. The data provided by power supplies with EtherCAT allow you to reduce operating costs and aligns with sustainability goals, demonstrating commitment to energy efficiency and environmental responsibility.
Enable predictive maintenance
Accessing device and system health data, coming from power supplies with EtherCAT, remotely or on-site allows you to implement predictive maintenance strategies. By monitoring and identifying potential issues before they lead to machine failures, you can reduce unplanned downtime, extend the lifespan of your equipment, and save on maintenance costs.
Enhance productivity
With the real-time data from power supplies with EtherCAT at your fingertips, you can fine-tune machine tool parameters for optimal performance. This leads to increased system throughput, improved product quality, and reduced waste, ultimately benefiting your customers by delivering better results due to the consistent performance and minimal disruptions.
Integration. Quick and easy
Comprehensive documentation
PULS offers all the required documentation and tools to integrate our smart power supplies with EtherCAT into your automation network, enabling direct access to the device data from the PLC or embedded controller.
This includes the download of extensive documentation on their product detail pages – from datasheets, data- and interface-description to quickstart guides, enabling a quick and easy integration.
Deep-dive into application data
Data overview
PULS power supplies with EtherCAT interface provide an extensive set of helpful application data.
Device information
Static
- Vendor ID
- Product Name
- Serial number
- HW and SW version
Realtime
- Device status
- Comm. reliability status
- Stress level
- Internal temperature
Recorded
- Total operating hours
- Internal temperature max .
- Uptime since last turn-on
- Turn-on counter
Input parameters
Realtime
- Input voltage R.M.S. (1 V)
Recorded
- Transient counter
Output parameters
Realtime
- Output current (100 mA)
- Output voltage (100 mV)
Troubleshooting
Events
- Total output current warning
- DC-output voltage warning
- Bonus Power active
- Overtemperature warnings
- Overload warning
- Input voltage out of limits
- Limited remaining lifetime
- Changes via local UI
Remote functions
- On / off
- Remote device configuration
(Vout, alarm limits,
PSU output current warning,
local UI, …)
Use your power supply data the right way
Get help from the PULS Application Center
Raw data is worthless if it is not interpreted correctly and concrete recommendations for action are derived from it. Due to the amount of different data available in a system, this step can become complicated.
The PULS Application Center (PAC) already has decades of experience evaluating and interpreting power supply data. This know-how is available to you at any time. Please feel free to contact their application consultants.
Contact PULS application engineers
IO-Link. Integrated HMI
Further smart communication options
Smart and independent
IO-Link
IO-Link is used in many machines and can be integrated into various fieldbus networks using IO-Link masters acting as gateways.

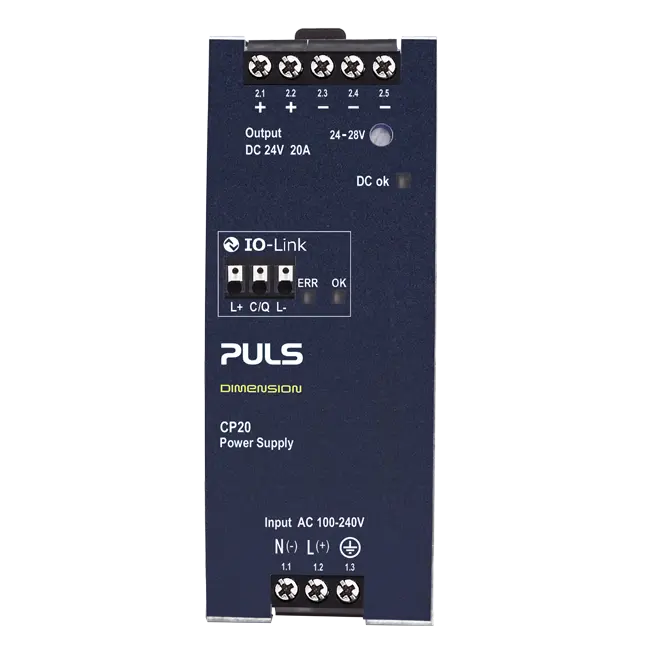

PULS provides a range of power supplies with IO-Link interface that allow remote configuration, e.g. output voltage or efuse settings, remote
diagnostics and control.
Local und beneficial
Integrated HMI

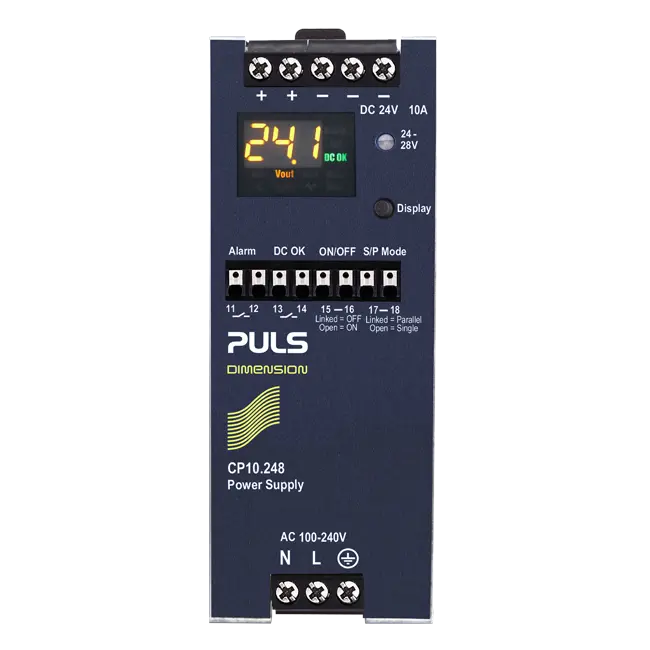

Many power supply and supplementary units from PULS are available with an integrated HMI – ranging from simple LED-bars indicating voltages, current settings of e-fuses and output loads to the unique built-in Power Supply Condition Display (PSCD) in the CP10.248 and CP20.248 .
This makes direct monitoring and analysing any application possible.
