Nidec Machine Tool Launches Robot Cameras for Hobbing and Broaching Machines to Help Automate Visual Inspections of Cutting Tools

December 22, 2022



– The two Robot Cameras can reduce tooling inspection time to less than 1/10 of its current length
– Robot Camera MAX, the inspection equipment for broaching machines, can inspect a tool of up to 2,300mm long.

Nidec Machine Tool Corporation announced recently that it has launched Robot Camera SPEED, visual inspection equipment for cutting tools (hobbing machines) to process gears and other components, and Robot Camera MAX, visual inspection equipment for broaching machines. These Robot Cameras use a digital camera to automatically shoot images of cutting tools’ edges at a high speed and with high accuracy, and save the graphic data of those images.

By entering a tool’s specifications into a Robot Camera, the user can have it determine what images to shoot of tools of different shapes, and identify any missing part on the edge of a cutting edge and any detached portion of coating, while judging if any problem exists with a tool’s visual appearance, including its wear status. The Robot Cameras, both developed for the automation of Nidec’s cutting tool manufacturing and regrinding. This improves their quality and can reduce inspection time by 90%.

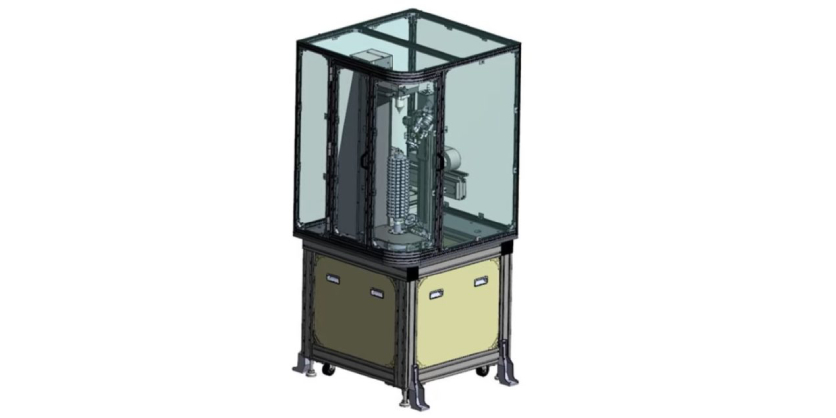

Robot Camera SPEED, Nidec’s latest inspection equipment for hobbing machines, can capture images of hob cutters with a straight orspiral tooth depth with an external diameter of 20 – 130mm, a total length of 50 – 350mm, and a weight of up to 20kg. With the images of all blades taken from four different directions with high accuracy, Robot Camera SPEED can determine if there is any problemthe cutting tool. Robot Camera MAX can accommodate a large and long tool with a maximum diameter of 200mm, a length of 2,300mm, and a weight of 30kg. It can capture images of any blade alignment, such as straight, helical, and spline.

Both “SPEED” and “MAX” are now available as part of Nidec Machine Tool’s strategy to improve its cutting tool-related services. Nidec Machine Tool is committed to actively working to solving its customer’s problems.

MC Nidec Machine Tool Launches Robot Cameras for Hobbing and Broaching 2 778x359

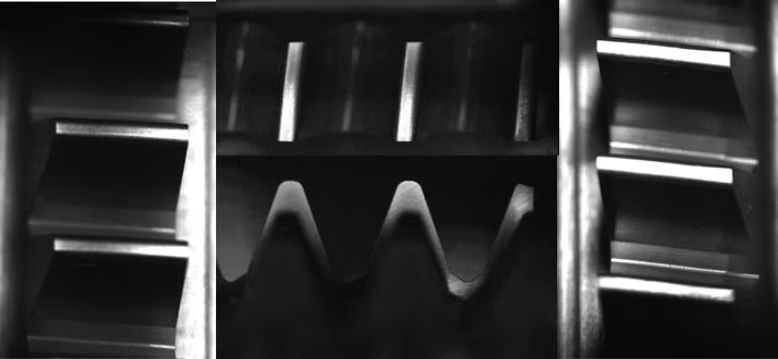

Sample images shot by Robot Camera SPEED

MC Nidec Machine Tool Launches Robot Cameras for Hobbing and Broaching 3 735x721

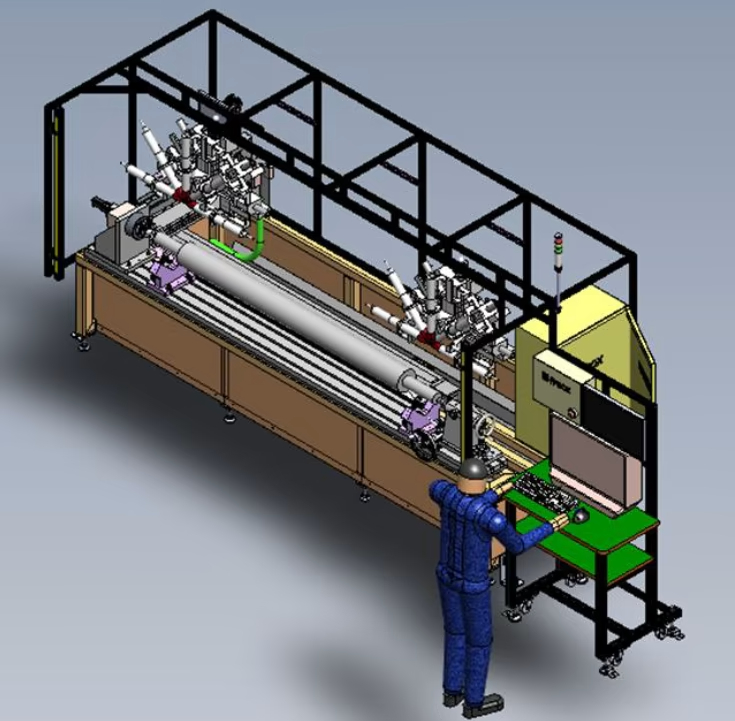

Broach Inspection Equipment Robot Camera MAX

MC Nidec Machine Tool Launches Robot Cameras for Hobbing and Broaching 4 1000x382

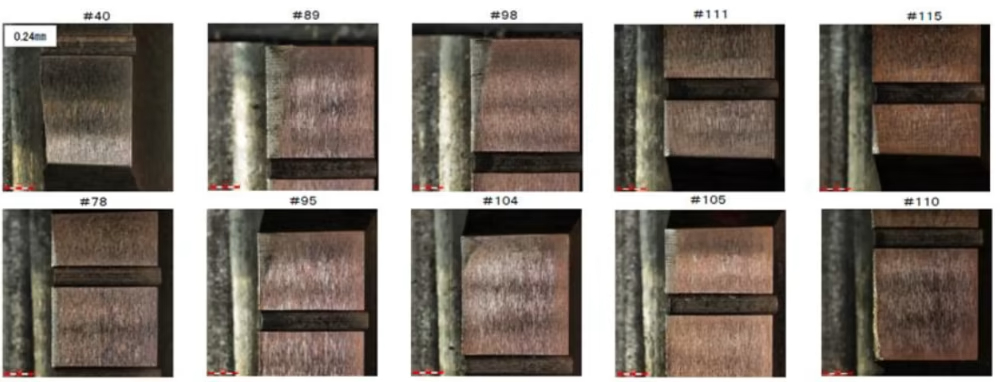

Sample images shot by Robot Camera MAX



To learn more about the new Robot Cameras from Nidec Machine Tool Corporation, click here
