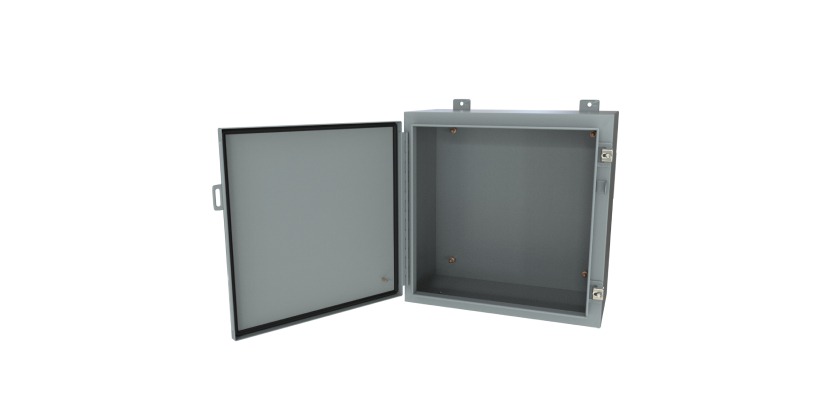

Type 4/12 Mild Steel Wallmount Enclosure – Less Panel – 1418LP Series from Hammond Manufacturing

April 9, 2026

The Type 4/12 mild steel wall mount enclosure from Hammond Manufacturing is designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Application

• Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
• Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards

• UL 508A Type 3R,12, 4
• cUL Type 3R, 12, 4
• Complies with
  • NEMA Type 3R, 4, 12 and 13
  • IEC 60529, IP66

Construction

• Formed 14 gauge steel bodies and doors.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Door stiffeners are provided in the larger enclosures for extra rigidity.
• Welded brackets provide for enclosure mounting.
• Formed lip on door and enclosure exclude flowing liquids and contaminants.
• Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
• Door is secured with easily operated stainless steel clamps.
• Provision for padlocking.
• Seamless poured-in place gasket.
• Collar studs are provided for mount­ing optional inner panels.
• A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
• A literature pocket is provided for the inside of the door.
• Note – Inner panel sold separately.

Finish

• Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.

Accessories

• Additional Inner Panels
• Perforated Inner Panels
• Swing Panel Kit
• Door Stop Kit
• Door Clamping Hardware – Heavy Duty
• Wallmount Quick Release Clamp
• Lock kit
• Drip Shield Kit
• Floor Stand Kit
• Window Kits
• Enclosure Stabilizers
• Climate Control
• Lighting
• General Accessories
