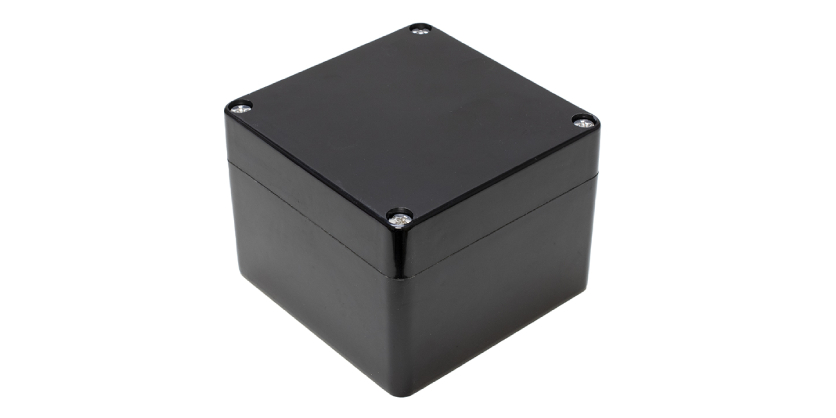

Type 4, 4X Glass Reinforced Polyester Enclosures

1590ZGRPBK Series, Watertight, Thick Wall, NEMA 4X, IP66, UL Listed

August 1, 2023

Type 4, 4X Glass Reinforced Polyester Enclosures
Key Features of the Type 4, 4X Glass Reinforced Polyester Enclosures:
  • Molded from a black, glass reinforced polyester. Smooth finish.
  • Includes gasketed lid with two piece “tongue & groove” construction.
  • Heavy duty, thick wall design.
  • North American Mark of Safety – C UL & UL listed. Industrial Control Panel Enclosure Certified to NEMA 4, 4X standards (UL 508A) – File #E65324 and IP66 Rated
  • Enclosures have an impact rating of IK09 in conformity with IEC 62208 and IEC 62262.
  • Lid contains self captivated stainless steel screws.
  • Gasket material is silicone sponge with temperature rating of -40 degrees C to +100 degrees C (-40 degrees F to +212 degrees F).
  • Easy wall mounting via “through box – blind hole” construction, outside of the gasket protection (see photos below).
  • Internal mounting shelf & bonding / mounting nuts molded in (see “open” photos or drawings for more details).
  • Optional 16 gauge, galvanized steel inner panels available (see drawings for details and part number listing below).
Accessories of the Type 4, 4X Glass Reinforced Polyester Enclosures:

Optional hinge kit, part number 1427HKBK

  • Molded from tough polyester
  • Includes 12 stainless steel M4 screws & 8 o-rings.
  • Mounting template included (refer to instructions)
  • Note: with hinges installed, all four lid screws are required to maintain a proper seal.
