Safety Switches with Guard Locking from Pilz
March 3, 2026
Work safely and productively – with safety switches from Pilz
Movable guards such as swing gates and sliding gates, flaps or covers, can be found in almost every application. If there are dangerous overrun movements, a safety locking device with appropriate manipulation protection in accordance with EN ISO 14119 is required.
The safety gate cannot be opened until all hazardous machine movements are stopped. A restart is not possible until the safety gate is closed and locked. It must not be possible to either defeat or manipulate the safeguards.
Pilz safety switches with guard locking offer the right solution for both process and personnel protection – for safe, productive working.
Safe guard locking. Efficient production.
- Comprehensive portfolio of switches offers a high level of flexibility during the machine design
- Designed for all applications up to PL e of EN ISO 13849 or SIL 3 of EN IEC 62061
- Save time and costs thanks to simple installation and the option for safe series connection with diagnostics
- Protection against hazardous machine movements due to monitoring of safe interlocking and safe gate guard locking
- High level of safety and productivity: Manipulation protection prevents unwanted production interruptions; coding freely selectable
- Individual safety gate solution tailored to the application
- High availability and long service life of the sensors
The right safety locking device for your application.
Are you looking for the right safeguard for your movable guard? Questions regarding the type of safeguard, the required guard locking and the Performance Level are fundamental in selecting the right gate guard locking device. Find the right solution here – start now:
Protect human and machine with gate guard locking
Are you looking for the right safeguard for your movable guard? Questions regarding the type of safeguard, the required guard locking and the Performance Level are fundamental in selecting the right gate guard locking device:
Type of safeguard
Is it an accessible or a non-accessible safeguard? Accessible safeguards are generally larger swing and sliding gates; non-accessible safeguards are covers or flaps, for example.
Process guarding or safe guard locking
The question regarding the type of gate guard locking depends on the stopping time. If the time to reach the danger zone is longer than the stopping time, process guarding is sufficient. If the intervention time is shorter than the stopping time, however, safe guard locking (personnel protection) is required.
Performance Level
The level of protection is defined in accordance with EN ISO 13849-1 or EN 62061. The key factors for this calculation, for example, are the severity of the potential injuries, frequency of exposure to the risk and ability to avoid the risks.
More information on gate guard locking:
Pilz podcast: learn how to find the right sfety locking device for your safeguard. In Pilz’s podcast, they explain the most important aspects around optimum safety gate guarding for process and personnel protection. Listen in now!
White paper on safety locking devices: Pilz has summarized all the key information about safety locking devices in this whitepaper. Discover everything you need to know about the various safety functions, and how to install them safely. Download the white paper!
Leaflet – Safety locking devices: In their new leaflet, “Safety locking devices – for greater safety and productivity,” you will also find interesting information on the application options for the individual products. Download the brochure!
Safe complete solutions for your safeguard
Reliable and efficient protection of safeguards includes not only the safety locking device but also an additional control unit and suitable wiring and control technology. Pilz safety sensors can be connected in series and are compatible with other products and interfaces. They perfectly fit into their plant environment and also enable Pilz components to be retrofitted to your plant.
Individual safety gate solution with access permission
- Safety switch with guard locking for process and personnel protection
- Simple operation with the pushbutton unit PITgatebox, with integrated access management as an option
- Additional accessories: from compatible door handle to escape release
- Comprehensive diagnostic and status information with Safety Device Diagnostics (SDD)
- Configurable safe small controller PNOZmulti 2

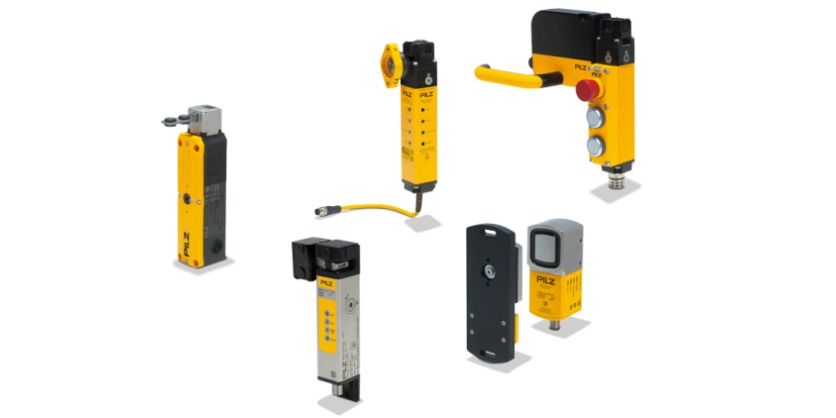

Pilz’s product range: Safety switches with guard locking
- Mechanical safety locking device PSENmech
- Safety locking device PSENslock 2
- Safety locking device PSENmlock
- Safety locking device PSENmlock mini
- Safety gate system PSENsgate / PSENmgate
