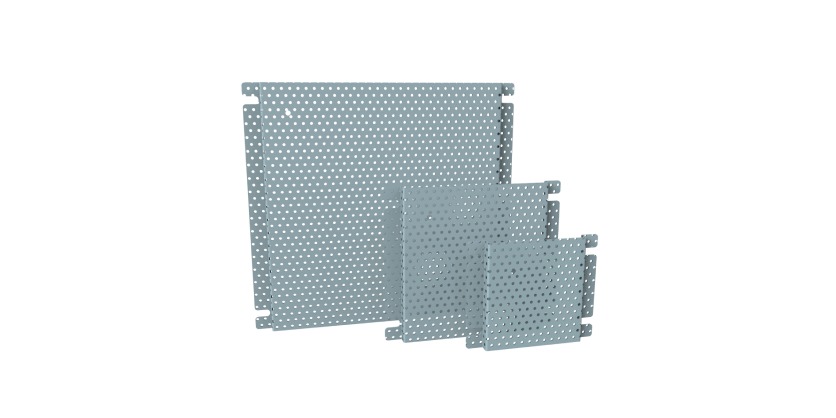

CS Perforated Panels CSPP Series from Hammond Manufacturing

CS Perforated Panels CSPP Series from Hammond Manufacturing

The new CS perforated panels CSPP Series from Hammond Manufacturing feature an inner mounting panel for use with CS/CSKO/CHKO Series screw junction boxes (painted or galvanized). They are constructed of perforated 16 gauge steel and mount internally using wall-mounting hole locations. They accept self tapping screws, eliminating timely measurement, marking and drilling of component mounting holes.

CS Perforated Panels Features

  • Inner mounting panel for use with CS/CSKO/CHKO Series screw junction boxes (painted or galvanized)
  • Constructed of perforated 16 gauge steel
  • Accepts self tapping screws eliminating timely measurement, marking and drilling of component mounting holes
  • 1/8″ diameter holes on 1/4″ staggered centers
  • Mounts internally using wall-mounting hole locations
  • Painted ANSI 61 gray

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch.

Panel SizeFor Use w/Enclosure
Part No.HWHW
CS66PP4.405.506.006.00
CS88PP6.407.508.008.00
CS1212PP10.4011.5012.0012.00
CS1818PP16.4017.5018.0018.00
CS2424PP22.4023.5024.0024.00
