Bonding Wire Kits BWK Series from Hammond Manufacturing

October 16, 2023

Bonding Wire Kits BWK Series from Hammond Manufacturing

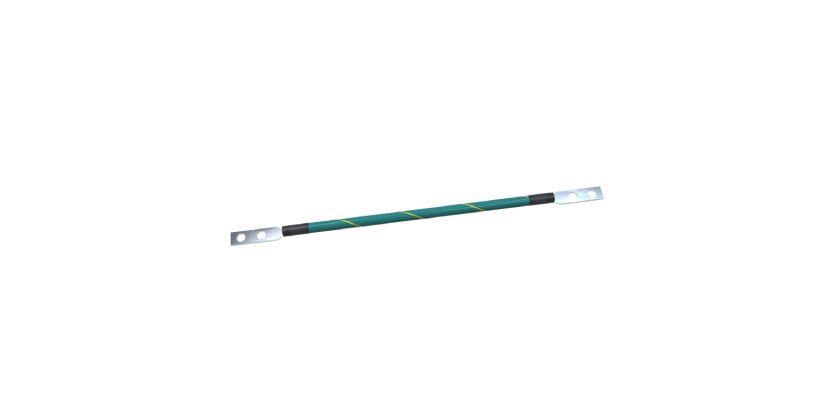

New from Hammond – 6 AWG and 10 AWG Bonding Wire Kits. Constructed with UL Listed components and with mounting hardware included for fastening to either 1/4-20 or 10-32 studs and also includes stick-on grounding symbol for compliance. Features a green-insulated, stranded copper cable with a yellow stripe.

6 AWG Bonding kit includes two hole compression lugs with bolt holes that are 1/4″ (6.4 mm) apart and spaced 5/8″ (15.9 mm) apart.

10 AWG Bonding kit includes one 0.256″ stud hole ring terminal crimped on either end to offer a bolt-on option for grounding network equipment – disconnect options also available. Manufactured in North America – In stock and ready to ship!

Features

  • Constructed with UL Listed components.
  • Mounting hardware is included for fastening to either 1/4-20 or 10-32 studs.
  • Includes stick-on grounding symbol for compliance.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.
6 AWG Bonding Wire Kit Features:
  • 6 AWG Green-insulated, stranded copper cable with a yellow stripe.
  • Both ends feature two (2) hole compression lugs with bolt holes that are 1/4″ (6.4 mm) apart and spaced 5/8″ (15.9 mm) apart.
10 AWG Bonding Wire Kit Features:
  • 10 AWG Green-insulated, stranded copper cable with a yellow stripe.
  • One (1) 0.256″ stud hole ring terminal is crimped on either end to offer a bolt-on option for grounding network equipment.
