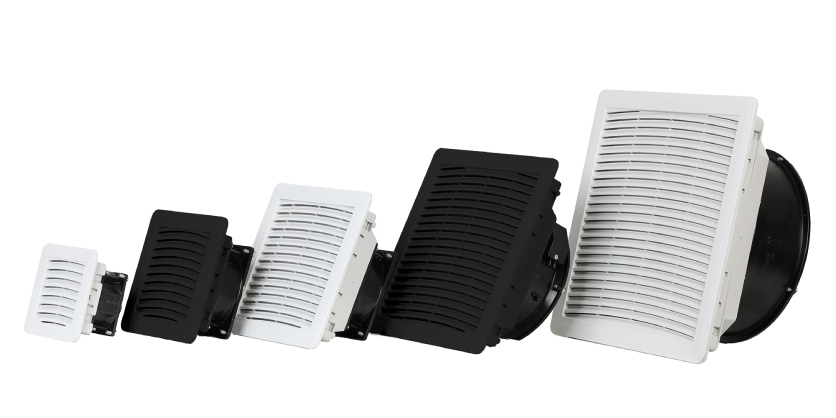

Ariel Technologies’ Fan Filters and Exhaust Filters

March 2, 2023

FTEC series Fan Filters and Exhaust Filters are designed to supply forced convection filtered air for enclosures and electrical panels. By using the unique filtering and cooling features, FTEC will cool down the inside of enclosures to a desired temperature to protect the electrical and electronic parts against heat. CSA and CSAus Listed, UL and cUL, Listed, and CE Complaint.

Certificates

  • UL and cUL Listed, File Number E497874
  • CSA and CSAus Listed, File Number 80030884
  • CE Compliant

Application

FTEC series Fan Filters and Exhaust Filters are designed to supply forced convection filtered air for enclosures and electrical panels.

By using the unique filtering and cooling features, FTEC will cool down the inside of enclosures to a desired temperature to protect the electrical and electronic parts against heat.

Features

  • Type 12 and Type 3R NEMA Rating-NO HOOD REQUIRED
    • IP 54 using G3 filter mat and IP 55 using G4 filter mat
    • 115 VAC, 230 VAC, 460 VAC, 12, 24, and 48 VDC available
    • Flow capacity from 15 CFM to 625 CFM (26 m3/hr to 1060 m3/hr)
    • Polyurethane sealing gasket
    • Ball bearing Fan
    • Easily snaps into place without the use of screws
    • Washable and reusable filter mat
    • Robust flame-retardant plastic housing, UL 94-V0
    • Operating/Storage Temperature: -4 °F to +158 °F / -20 °C to +70 °C
    • Durability: 50,000 – 90,000 hrs
    • UV Resistant

Colours

  • RAL 7035 – Light Gray
  • RAL 7032 – Dark Gray
  • RAL 9011 – Black
  • Other colors on request

More Information

Brochurehttps://arieltech.ca/resource-library/

Specifications Sheet

Installation Instructions

3D Drawings
