22.5mm Joysticks

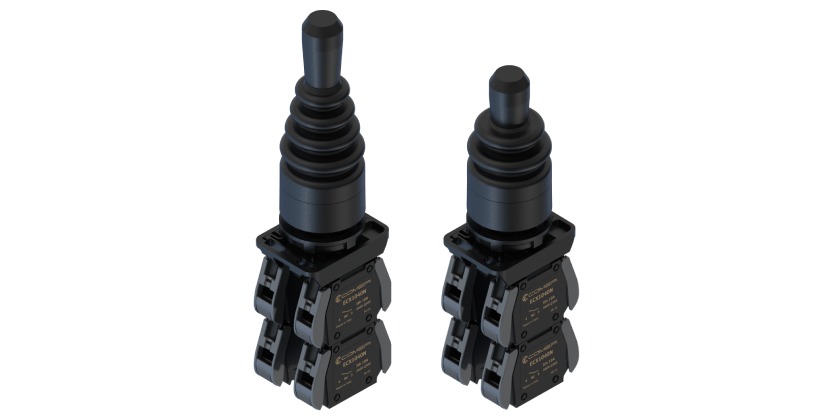

ITC introduces the Joysticks, for mounting in a 22.5mm cut-out. This family consists of 24 different models – 10 of them with a short lever (55mm total) and 10 with a long lever (79mm), 3 with a metal body and a wobble-joystick.

They can be supplied with different operation modes:

  • “Zero” plus one position, maintained or non-maintained
  • “Zero” plus two positions, maintained or non-maintained
  • “Zero” plus four positions, maintained or non-maintained

The 55 and 79mm joysticks are supplied with a mounting collar and the appropriate number of contact blocks, already mounted.

22.5mm Joysticks at ITC Electrical Components
22.5mm Joysticks at ITC Electrical Components
22.5mm Joysticks at ITC Electrical Components

ECX4500 series

ECX1510 series – Metal body

Wobble operation

Features and specifications:

  • Material: thermoplastic / Metal
  • Lever colour: black
  • IP Rating: IP65 (front)
  • Operating Temperature: -25°C and +70°C
  • Mechanical life: 300,000 operations
  • Electrical characteristics:
    • (UL/CSA) 600V (A600)
    • 10A rated thermal current
    • NC contacts with positive opening
  • Approvals: cULus

 Source

More Information

For ITC Electrical’s Joystick catalog, click here.
