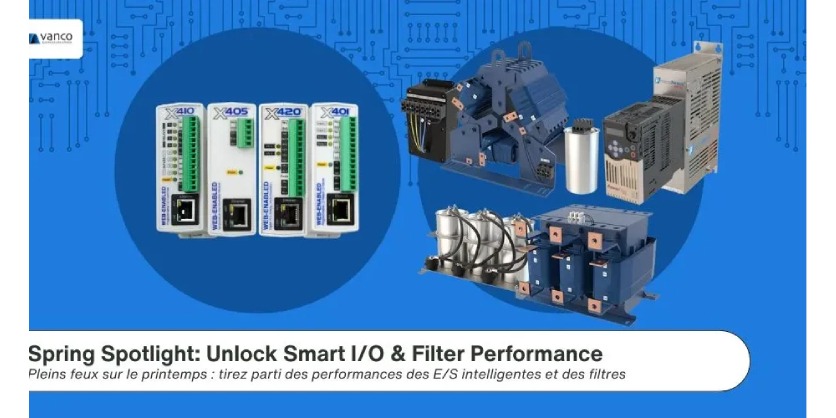

Spring Spotlight: Unlock Smart I/O & Filter Performance
June 19, 2025
Introduction
As digital transformation reshapes manufacturing and warehousing, gaining actionable insights from the field and protecting sensitive assets are top priorities. Smart I/O brings intelligence to every corner of your facility, while motor protection filters shield your drives and motors from harmful voltage transients. Together, they form a robust foundation for a smarter, safer, and more efficient operation.
What is Smart I/O?
Definition & Fundamentals
I/O modules are the interface between controllers and field devices, handling both analog signals (e.g., temperature, flow) and digital on/off data. Smart I/O elevates this by embedding microprocessor‑based intelligence directly in the I/O, enabling diagnostic data, multiple process variables, and bi‑directional communication without adding complexity.
ControlByWeb’s Approach
ControlByWeb’s Ethernet I/O and Smart Relay products feature a built‑in, browser‑based user interface and no‑code logic that simplify setup and empower personnel to monitor/control from anywhere. Their digital and analog modules support email/SMS alerts, REST APIs, and cloud integration for centralized data access.
Key Benefits
- Near‑Real‑Time Visibility: Field data and diagnostics at your fingertips reduce reaction times and unplanned stops.
- Reduced Downtime: Alarms and remote troubleshooting cut mean time to repair (MTTR) by alerting teams before failures escalate.
- Scalability & Flexibility: Add modules anywhere on your network without rewiring central cabinets.
Understanding Motor Protection Filters
The Challenge of PWM Drives
Modern VFDs use pulse‑width modulation that can introduce fast dv/dt pulses and common‑mode voltages. Over long cable runs, reflected waves can double peak motor terminal voltages, stressing insulation and bearings.
Filter Types & Performance
- SineWave Nexus®: A single passive device that cleans PWM outputs and virtually eliminates bearing‑disturbing common‑mode voltage up to 15,000 ft cable length.
- SineWave Guardian®: Best‑in‑class band‑reject filter for extreme waveform cleanup, reducing high‑frequency content to protect motor windings.
- dV/dt Series Filters: Fourth‑order passive filters that limit voltage rise to <400 V/µs and cap peak voltages at ≤150% of bus voltage for up to 1,000 ft, with extended life to 3,000 ft in some cases.
- dV Sentry® Filters: Combined reactor‑resistor snubbers and simple series reactors offering cost‑effective damping and peak voltage reduction for shorter cable runs.
Key Benefits
- Extended Motor Life: Reduces insulation heating and prevents bearing pitting/frosting.
- Eliminated Unscheduled Downtime: Mitigates failures from over‑voltage stress and cable reflections.
- Lower Maintenance Costs: Replaces shaft‑grounding rings, isolation transformers, and constant maintenance with a passive electrical solution.
How They Work Together
Integrating ControlByWeb smart I/O with MTE filters creates a seamless loop: I/O modules detect anomalies (e.g., rising current, unexpected temperature), trigger alarms or shutdowns, and provide diagnostics, while filters protect the very motors those I/O monitor. This synergy means you catch issues early and prevent damaging transients before they impact production.
Implementation Steps
- Assess Your System: Map existing I/O and motor cable runs; identify critical assets.
- Select Smart I/O Modules: Choose ControlByWeb Ethernet I/O or Smart Relays to cover needed analog/digital channels and connectivity options
- Specify Motor Filters: Match MTE filter type (Nexus, Guardian, dV/dt) to cable length, switching frequency, and motor ratings
- Plan & Budget: Use front‑end loading (FEL) to define scope, cost, and ROI metrics, factoring in reduced downtime and maintenance savings
- Execute & Validate: Partner with Vanco Electrical Solutions for integration support, commissioning, and training.
More Information
Ready to modernize with smart I/O and robust motor protection? Contact Vanco Electrical Solutions to plan your existing or upcoming project to be tailored to your requirements.
