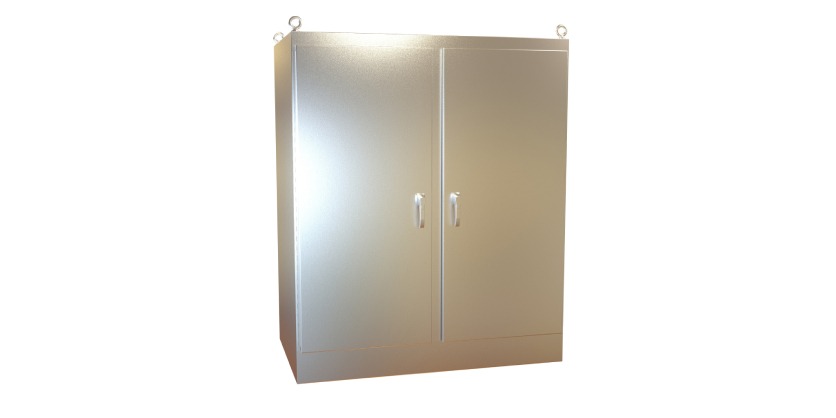

Type 4X Stainless Steel Two Door Freestanding Enclosure HN4 FSTD SS Series – Continuous Hinge Door with Handle from Hammond Manufacturing
July 23, 2025
Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments, the Type 4X Stainless Steel two door freestanding enclosure HN4 FSTD SS series from Hammond Manufacturing provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Applications
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Construction
- Formed 12 gauge 304 stainless steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
- Doors are supported with heavy gauge continuous hinges.
- Dual Access versions have doors front and back.
- 3-pt padlocking door handle.
- Seamless poured-in place gasket.
- A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- Center post is removable for easy installation of the inner panel.
Standards
- UL 508A Type 3R, 4X and 12
- CSA Type 3R, 4X and 12
- Complies with:
- NEMA Type 3R, 4X, 12 and 13
- IEC 60529, IP66
Finish
- Cover and enclosure are natural stainless steel with a smooth brushed finish.
Accessories
- Inner Panels
- Center Panel Supports
- Panel Rails
- Swing Out Frames
- Door Stop Kit
- Top Hat Cable Modules
- Drip Shield Kit
- Type 12/4, 4X Handle Kits
- Window Kits
- Climate Control
- Lighting
- General Accessories
