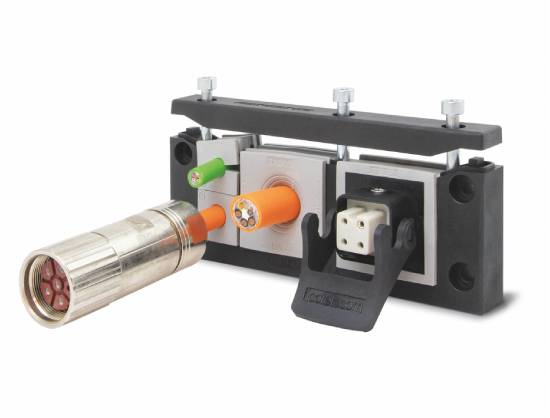

New AT-HA Grommet from icotek:

Compact integration of 3A and 4A connectors in the IMAS-CONNECT™ system

With the new AT-HA grommet, icotek is expanding its innovative IMAS-CONNECT™ adapter system with a forward-looking solution for industrial use. The AT-HA enables the integration of 3A and 4A plug inserts directly into an adapter cable entry without the need for an additional cut-out.

The AT-HA cable gland is based on the icotek KT cable grommet ‘large’ and is equipped with a robust polyamide body. It is fully compatible with all icotek KT based cable entry systems and is delivered ready for use with a pre-assembled locking element. In combination with the 3A and 4A insert sets and the matching connector housings for M20 or M25 with cable glands, it provides a compact, efficient and flexible solution for a wide range of industrial applications.

New AT-HA Grommet from icotek:
Advantages for users
  • Space-saving thanks to the integration of the connector into the cable entry frame
  • Can be combined with existing frame solutions
  • No additional cut-outs are required
  • Very easy to assemble
  • Compatible with numerous industrial plug insert manufacturers
Technical characteristics
  • Protection class: IP65 when plugged in, IP54 with optional protective cover
  • Plug housing with cable gland:
    • M20 for cable diameters from 6 to 12 mm
    • M25 for cable diameters from 13 to 18 mm
  • Flame class: UL 94 V-0, self-extinguishing
  • Temperature: -40 °C to +100 °C (static)
  • Halogen free, silicone free
  • Material
    • Grommet: elastomer
    • Body: polyamide

With the AT-HA grommet, icotek is setting new standards in connection technology. The solution offers users greater flexibility, reduces the space required in the control cabinet and enables safe, standard-compliant integration.
