Achieve the Next Level of Energy Efficiency With ABB’s New Baldor-Reliance EC Titanium Integrated Motor Drive
July 7, 2020
Achieve the Next Level of Energy Efficiency
Achieve the next level of energy efficiency with ABB’s New Baldor-Reliance EC Titanium integrated motor drive. Motor standards have been in place for decades, yet there is a growing demand to achieve greater efficiencies as regulations continue to tighten on the total system for fans, pumps and compressors. Equipment manufacturers are turning to new motor technologies to achieve the highest system efficiency possible from wire to air while using sustainable materials.
ABB’s Baldor-Reliance EC Titanium product line utilizes Ferrite Assisted Synchronous Reluctance (FASR) technology with non-rare earth magnet materials to meet and exceed IE5 efficiency. Suitable for constant and variable torque applications, the EC Titanium offers excellent performance across a wide speed load range and above base speed conditions.
“The EC Titanium product line is economic and efficient, even at partial loads where most fans operate,” says Mark Gmitro, Global Product Manager for variable speed motors, ABB. “The real advantage is that efficiency stays high at any speed; including operation above base speed, allowing for greater fan design optimization.”
Mark Gmitro, Global Product Manager for variable speed motors, ABB
The near unity power factor of the EC Titanium enables the use of smaller drives, reducing the footprint and weight of the integrated system. Additionally, the integrated motor drive solution saves considerable control panel space and reduces wiring costs by placing the drive on top of or on the opposite drive end of the motor.
Integrated motor drive models are ABB Ability ready with built in capability allowing building operators to have greater connectivity and transparency of their equipment.

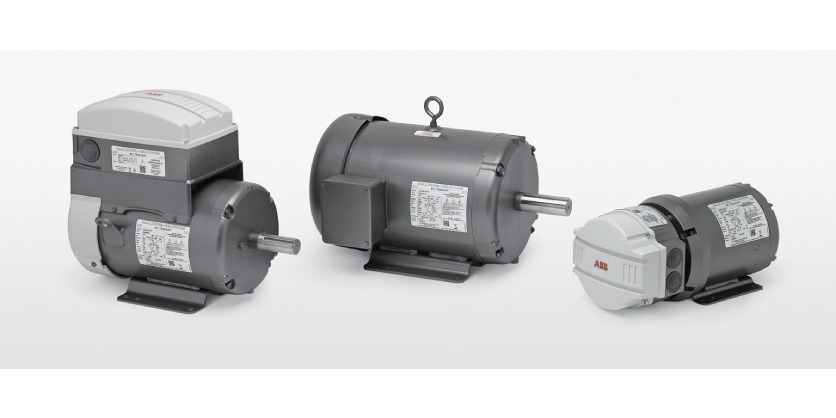

The Baldor-Reliance EC Titanium product line is offered in standard NEMA dimensions and can be provided with IEC mounting compatibility. Ratings are available as a motor only option from 1 to 20 HP (0.75 – 15 kW), as an integrated motor with a top mount drive in ratings of 1 to 10 HP (0.75 – 7.5 kW), or axial mounted drive in ratings 1 to 7.5 HP (0.75 – 5.5 kW).
Related Video
ABB’s Baldor-Reliance EC Titanium – Next Generation Efficiency and Performance
ABB’s Baldor-Reliance® EC Titanium™ motors are highly efficient integrated motor/drive systems that combine innovative, eco-friendly technologies for a sustainable, wirelessly connected solution. EC Titanium motors are available as an integrated motor/drive system or stand-alone motor unit, designed to be paired with a variable speed drive.
