New ASB160 Series 160 W, Full-Brick AC/DC Power Supplies from XP Power Reduce Failure Rates Using Effective Heat Exhaustion

March 31, 2023

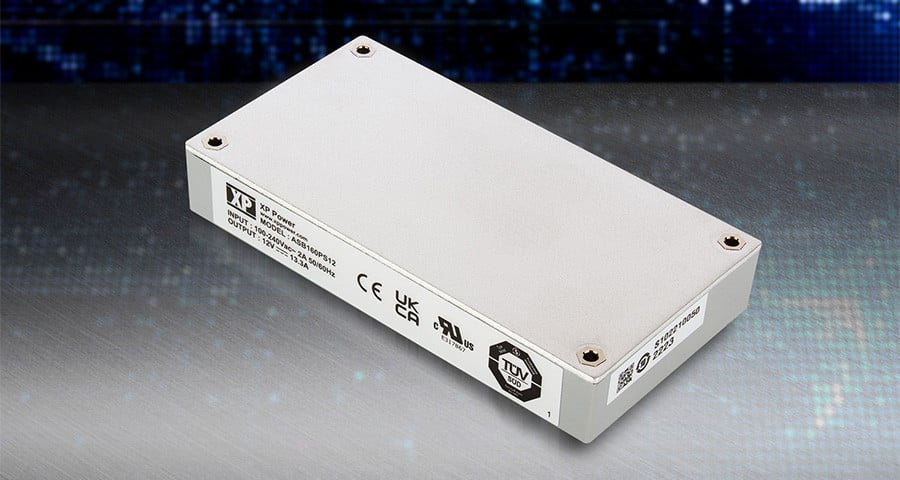

ASB160 FROM XP Power
XP Power’s ASB160 power supplies have a baseplate-cooled design that reduces failure rates through effective heat exhaustion

XP Power’s ASB160 series low-profile, full-brick, baseplate-cooled AC/DC power supplies require no external components. The series includes a built-in EMC filter, AC fuse, and bulk storage capacitor, providing a complete AC/DC power solution ready for installation into industrial and semiconductor manufacturing applications.

The series reduces failure rates through effective heat exhaustion in a baseplate-cooled design. Their sealed enclosure makes them suitable for use in ATEX approved equipment. The ASB160 offers high efficiency, minimizes waste heat and heat sinking requirements, and operates from -40°C to +90°C on the module baseplate.

Features

  • Input voltage range: 90 VAC to 264 VAC
  • Output voltage trim: ±5%
  • Overcurrent, overvoltage, and overtemperature protection
  • Single output voltages from 12 VDC to 54 VDC
  • Rugged, low-profile design
  • High efficiency of up to 93%
  • Baseplate operating temperature: -40°C to +90°C
  • Optional heatsink available
ASB160 FROM XP Power
ASB Series

Applications

  • Test and measurement
  • IoT and industry 4.0
  • Industrial displays
  • Test and measurement
  • Sensing and detection
  • Robotics
  • Factory Automation
  • Process Controls

Markets

  • Analytical instrumentation
  • Industrial technology
  • Semiconductor manufacturing
