Liquid-Tight Cordgrips (Nickel Plated Brass) 1427BCG Series from Hammond Manufacturing

June 24, 2025

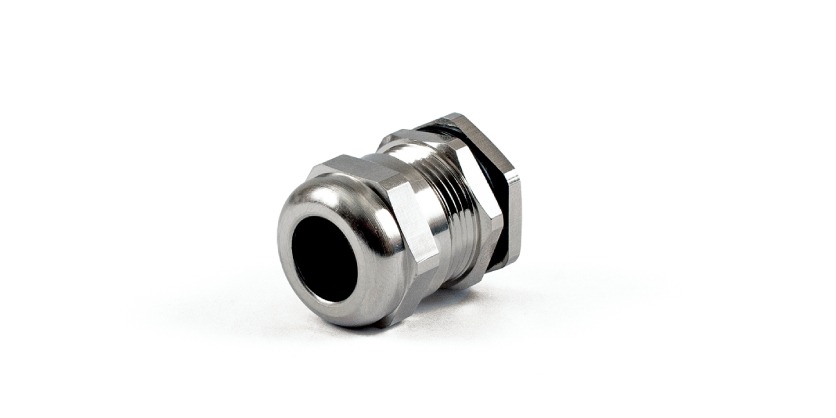

Liquid-Tight Cordgrips (Nickel Plated Brass) 1427BCG Series

The new 1427BCG Series from Hammond Manufacturing are liquid-tight corgrips made from nickel plated brass. They can be used wherever the cable is entering or leaving an enclosure. Due to a large opening and nitrile rubber (NBR) seal, the 1427BCG Series of cordgrips accepts a range of cable diameters. Designed from NEMA Type 4, 4X, 6, 6P, 12, and 13 enclosures, they provide protection to IP68.

Features of the 1427BCG Series:

  • Liquid-tight cordgrip made from nickel plated brass
  • Used where cable is entering or leaving an enclosure.
  • Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
  • The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
  • Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
  • Locknut and EPDM o-ring included (as shown).
  • Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 – Protection to IP68.
  • -40C to + 100C working temp with a temporary heat resistance up to 120C.
  • UL listed.
