ITC 101: NEMA vs. IP Ratings: What’s the Difference?

NEMA vs. IP Ratings: What’s the Difference?

ITC Electrical has already explored NEMA and IP ratings individually, each vital for understanding how electrical enclosures and components are protected. Now, they take it a step further by comparing these two systems side by side.

What Do They Measure?

  • NEMA ratings define enclosure protection against dust, water, corrosion, and more. They are mostly used in North America and often include mechanical integrity and environmental resistance.
  • IP ratings, set by the IEC (International Electrotechnical Commission), use a two-digit code to specify protection against solid objects (first digit) and water (second digit).

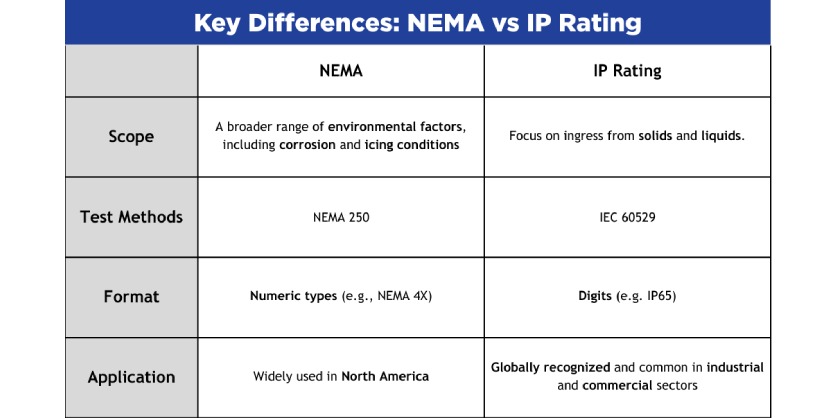

Key Differences

  • Scope: NEMA covers a broader range of environmental factors, including corrosion and icing conditions. IP ratings focus only on ingress from solids and liquids.
  • Format: NEMA uses numeric types (e.g., NEMA 4X), while IP uses digits (e.g., IP65).
  • Application: NEMA is widely used in North America; IP ratings are globally recognized and common in industrial and commercial sectors.

Common Ground

While the two systems are developed by different organizations and use different formats, many NEMA types have approximate IP equivalents. For example, NEMA 4X is often considered similar to IP66, as both offer protection against water jets and dust. However, only NEMA includes corrosion resistance and additional mechanical durability.

ITC 101: NEMA vs. IP Ratings: What’s the Difference?

Utilizing both systems

Both systems ensure your equipment stays protected. Understanding their differences and overlaps helps you choose the right rating for your environment.

References:

International Electrotechnical Commission (IEC), 2021. IEC 60529: Degrees of protection provided by enclosures (IP Code). Geneva: IEC. Available at: https://webstore.iec.ch/en/publication/2452

National Electrical Manufacturers Association (NEMA), 2024. NEMA BI 50055-2024: NEMA 10250 Enclosure Types. Rosslyn, VA: NEMA. Available at: https://www.nema.org

National Electrical Manufacturers Association (NEMA), n.d. How NEMA Standards Are Developed. [online] Available at: https://www.nema.org/standards/about-standards/how-nema-standards-are-developed

National Electrical Manufacturers Association (NEMA), n.d. How to Read a NEMA Standard. [online] Available at: https://www.nema.org/standards/about-standards/how-to-read-a-nema-standard

Allied Electronics & Automation, 2020. NEMA vs IP Ratings Explained. [online] Available at: https://www.alliedelec.com/blog/nema-vs-ip-ratings-explained
